Eibach Platinum Rear - Dia. 500 in | Len: 1100 in | Rate: 18504 lbs/in
Part #: PR1100.500.0185
Single Spring
$135.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications

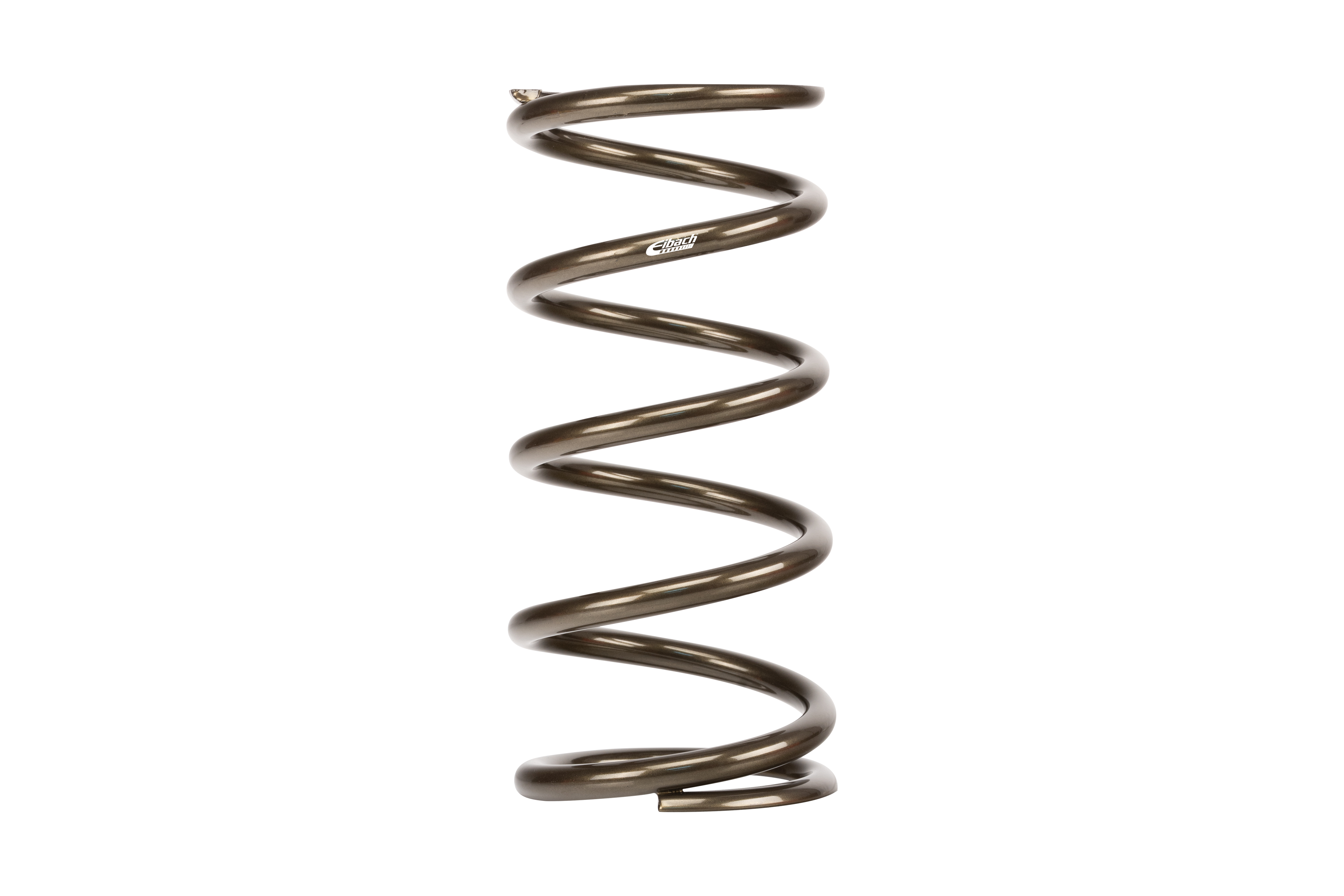

Platinum Barrel Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 11.00 | 5.00 O.D. | 185.04 | 2.60 | 8.39 | 1554.34 | 4.52 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 279.40 | 127.00 O.D. | 3.3 | 66.00 | 213.00 | 6914.00 | 2.05 |
Features
Eibach PLATINUM series race springs are engineered using our proprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.- Redesigned Barrel Spring shape with increased suspension travel and linearity - will replace the XT Barrel counterparts
- Hi-Tensil Platinum Spring Coil Used
- Ultra-Lightweight for Reduced Unsprung Mass
- Each Spring Individually Tested
- Maximum Travel in Combination with Smallest Block Heights
