Adjustable End-Links Sway Bar End Links

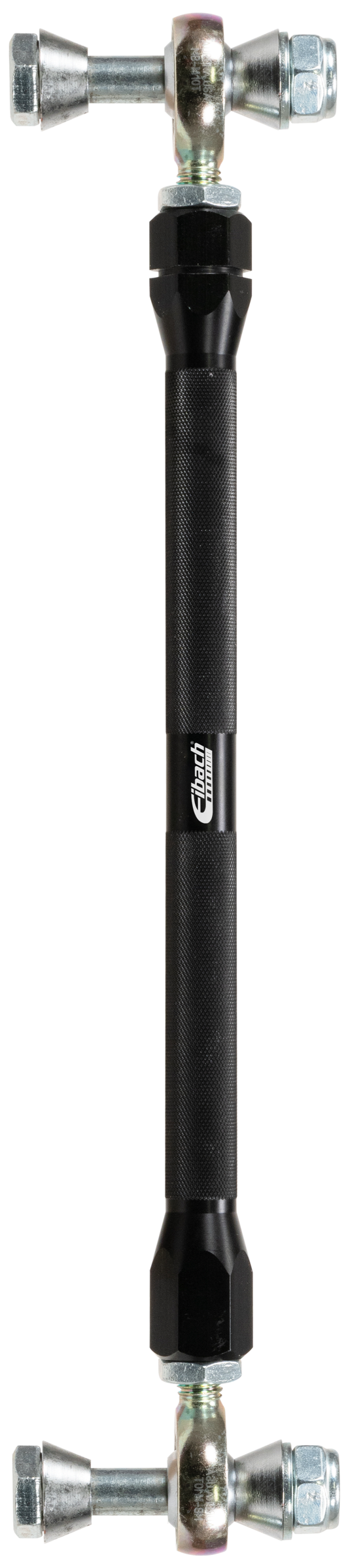

Eibach sway bar adjustable end link

Set Up Your Sway Bar Correctly

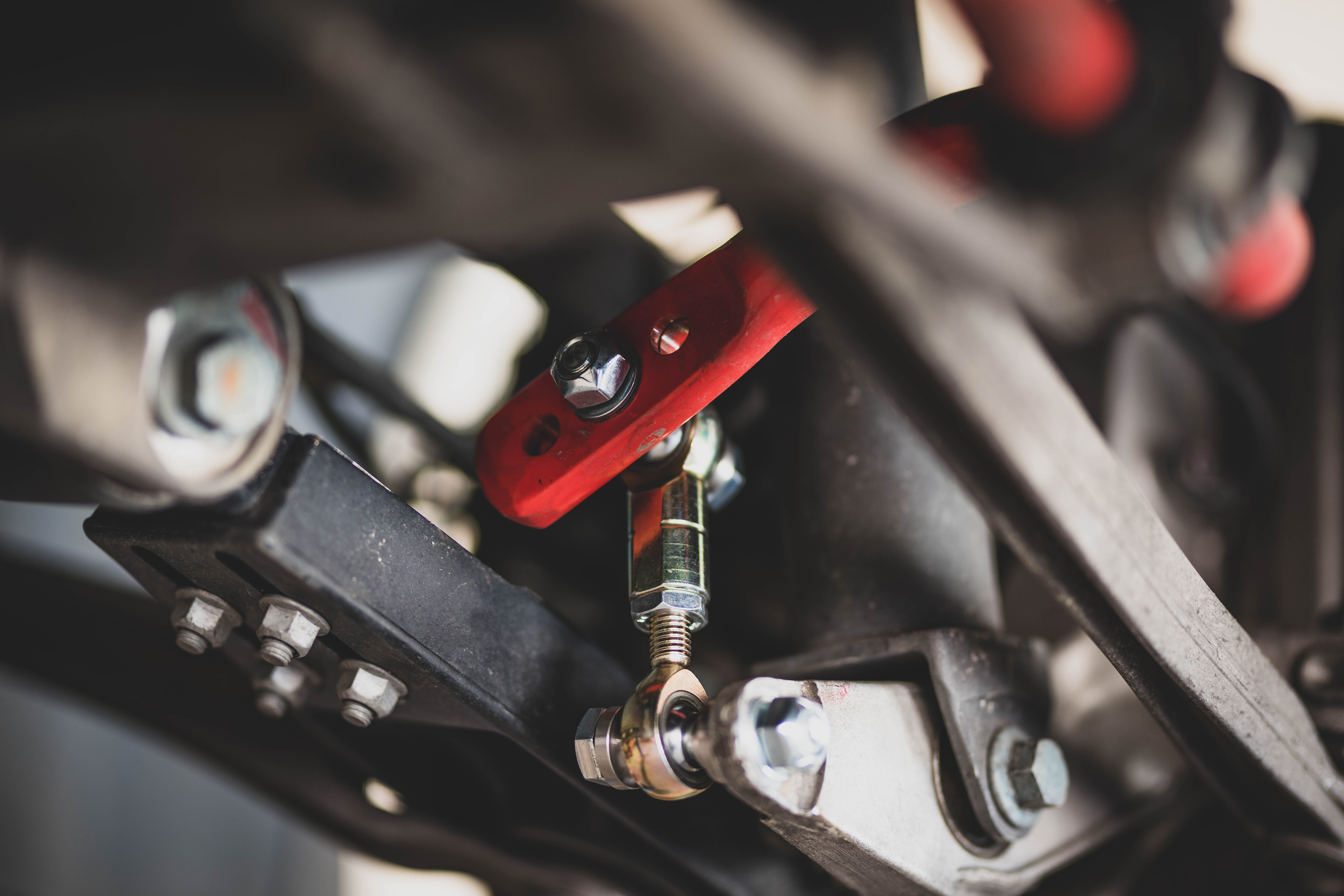

Sway bar/stabilizer end links connect the sway bar to a fixed point on the suspension and are designed to transfer forces between the suspension and the sway bar. Adjustable end links are an upgrade over standard, non-adjustable end links that allow for the removal of potential sway bar interference and preload on vehicles with lower ride heights. Removing sway bar preload allows quick adjustment on bars with multiple settings. A properly set up sway bar leads to less body roll and thus, improved handling.

High Quality Components

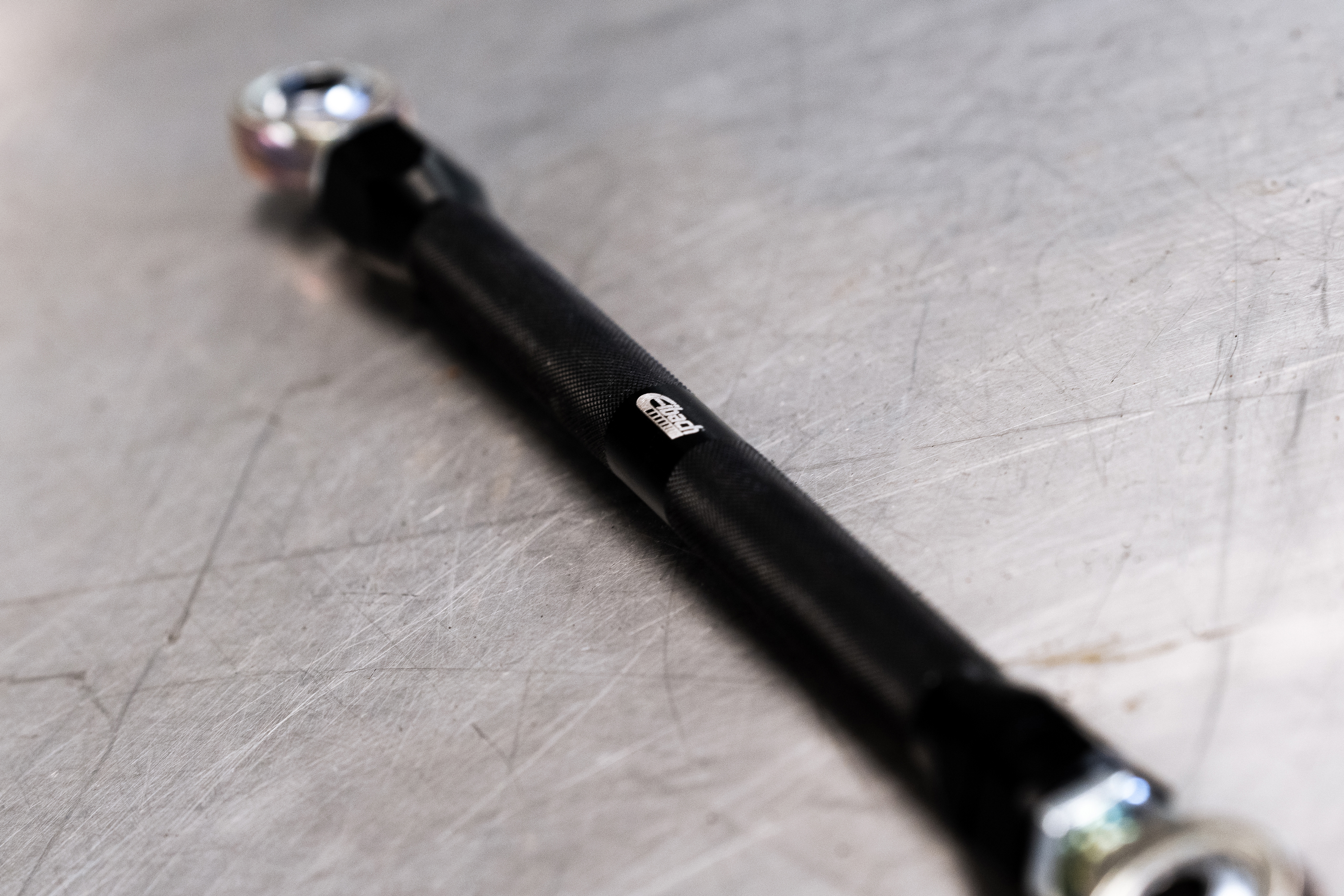

When it comes to choosing the best adjustable end links for your vehicle's suspension system, Eibach is the top choice. Eibach offers a range of high-quality components, including lightweight rod ends and heavy-duty Aurora® rod ends for those who demand the best in extreme driving conditions. Eibach Turnbuckles are made of durable black anodized/knurled 6061 T6 aluminum, with a laser engraved Eibach logo, and come in various lengths to fit your specific needs. Additionally, Eibach's Misalignment Spacers provide maximum articulation for the rod end and are available in 5mm and 10mm thicknesses.

When it comes to performance, durability, and adjustability, Eibach adjustable end links are the best choice for any driver looking to improve their vehicle's suspension.

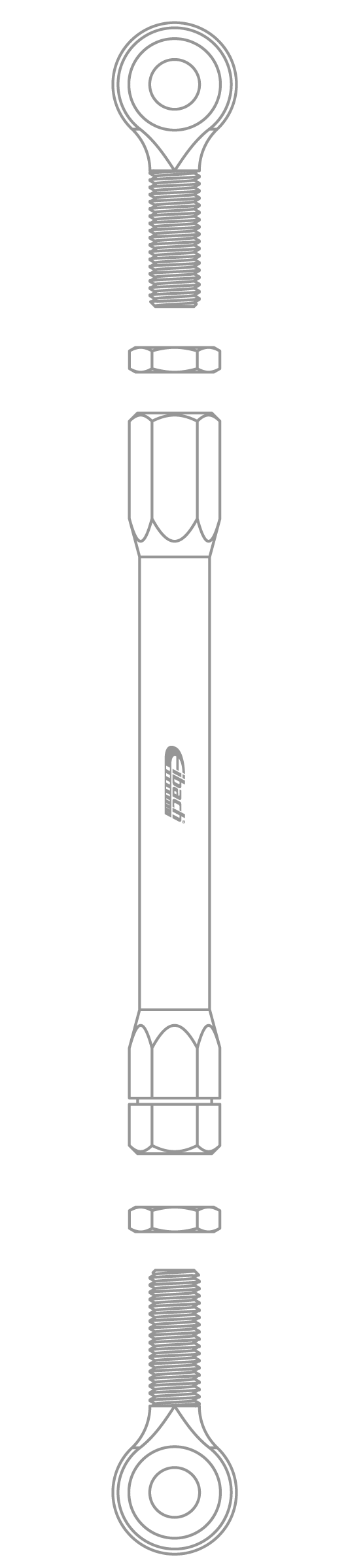

Eibach adjustable end-link drawing

Selecting the Right Endlinks

  1. Mesure stock end link eye to eye length

    To determine what length you need for your end link, you may be able to measure without removing anything from your vehicle, otherwise remove your existing end links and measure from the center of one bolt to the other.

  2. Determine bolt diameter and minimum length

    In order to determine the new end link's, measure the diameter (in mm) of the end link bolt, then the eye to eye length at the end link's minimum adjusted length (in mm). Note these two numbers to enter into the End Link Search below.

    DISCLAIMER: Be sure to choose an end link that will not exceed the maximum length listed , otherwise it can break. If your measurement is close to a maximum length, go one size up.

    Inches to mm Conversion Calculator

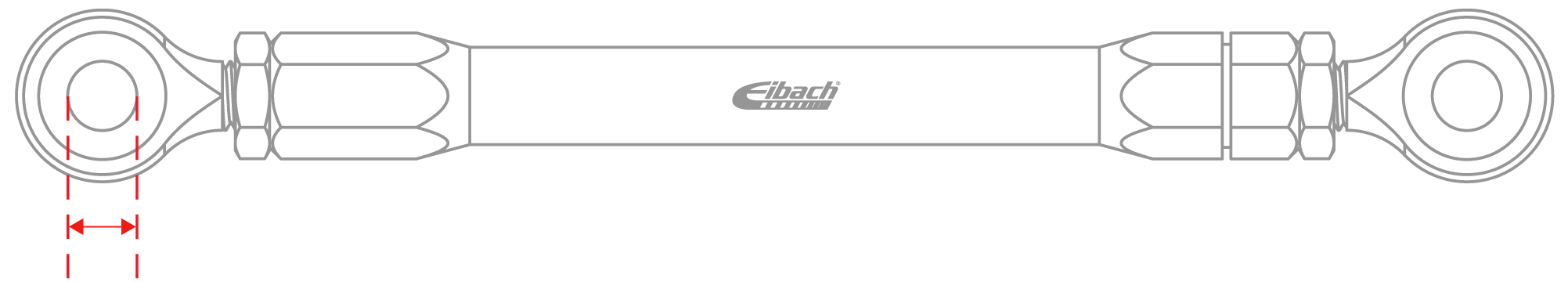

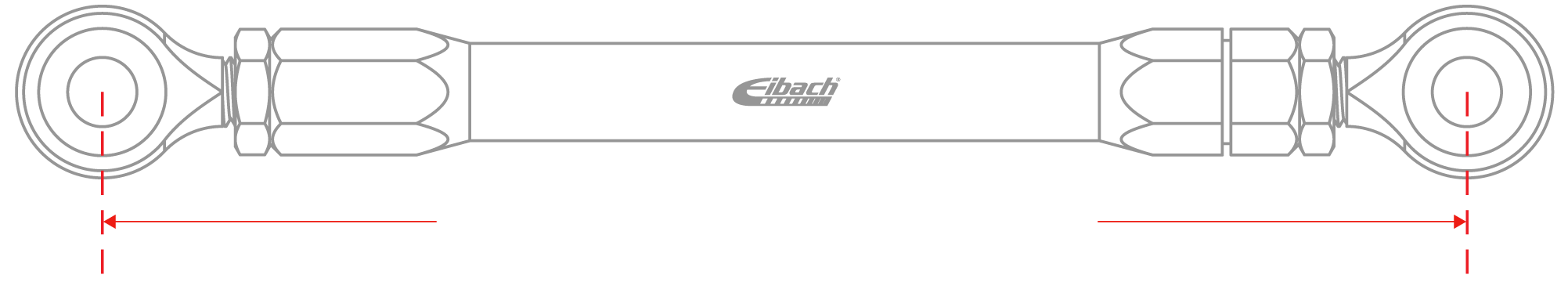

    How to meausure end link bolt diameter How to measure minimum end link length
  3. Choose Misalignment Spacers

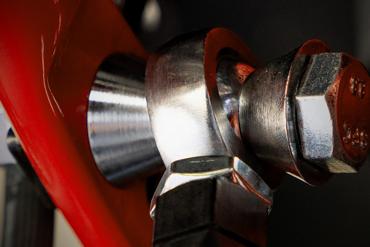

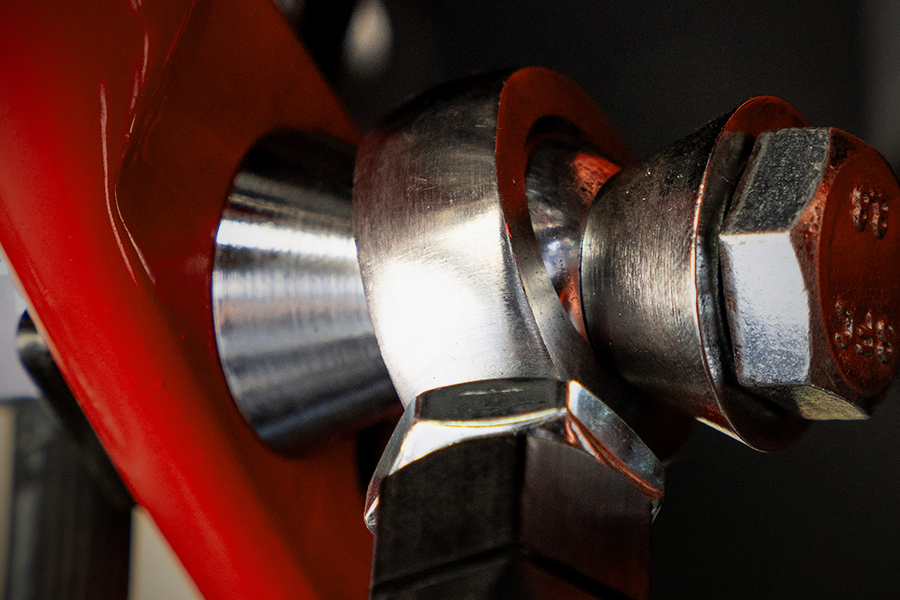

    Check your clearance around where the end link is located. Eibach recommends using a thicker spacer when space allows to keep the end link further away from the other components. The goal is to have as much clearance around the end link from other components as possible.

    Note: solid steel replacement parts can transmit frequencies and may attribute to increased NVH.

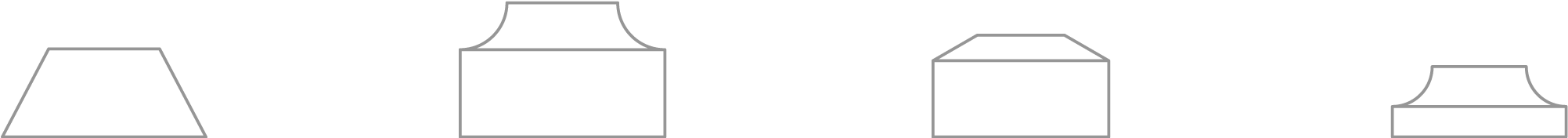

    Sway bar end link misalignment spacer options
  4. Search Our Catalog

    Once you have determined your needs, select your specifications from the drop-down menus below. A typical order consists of either standard or heavy-duty end links and a set of misalignment spacers. Parts can be ordered individually as well.
