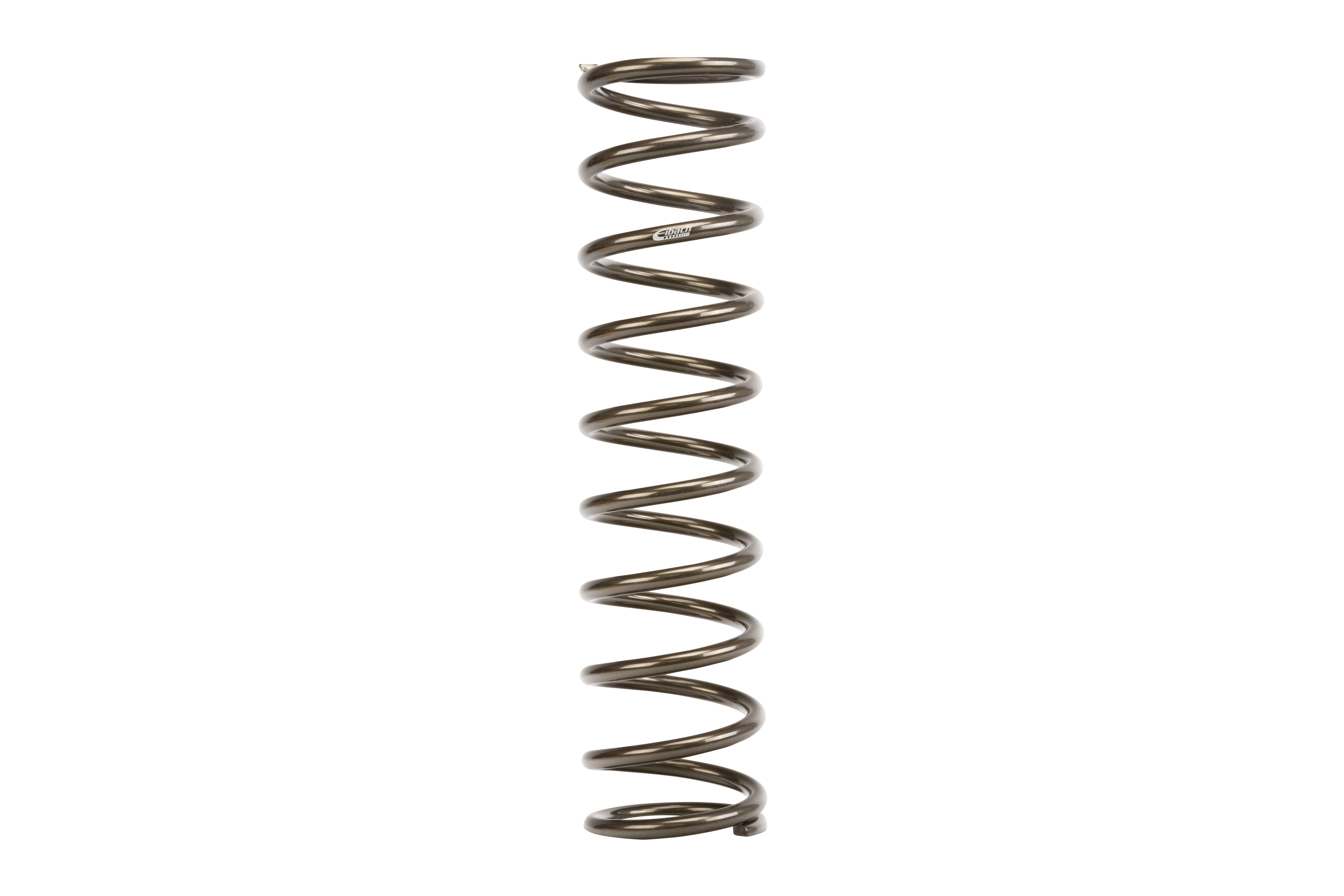

Eibach Platinum Rear - Dia. 350 in | Len: 1800 in | Rate: 13000 lbs/in
Part #: P1800.350.0130
Single Spring
$135.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Platinum Rear Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 18.00 | 3.50 I.D. | 130 | 5.20 | 12.80 | 1663.14 | 6.88 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 457.20 | 88.90 I.D. | 2.32 | 132.00 | 325.00 | 7398.00 | 3.12 |
Features
Eibach PLATINUM series race springs are engineered using our proprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.- Ultra Light-Weight Using High Tensile Steel
- More Travel / Deflection than Standard Racing Coil Springs
- Block Resistant - No Loss in Spring Height!
- Flat-Ground End Configuration with Parallel Tolerance to +/-1 Degree
- The Eibach ER Platinum Springs will Maintain Their Dimensions and Rates to Incredibly Tight Tolerances, Lap after Lap, Race after Race
