Eibach Platinum Rear - Dia. 350 in | Len: 1600 in | Rate: 7002 lbs/in
Part #: P1600.350.0070
Single Spring
$135.00
FREE ground shipping for Winner's Circle Members - Join Now!
Out of stock - ETA Aug 8, 2025
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications

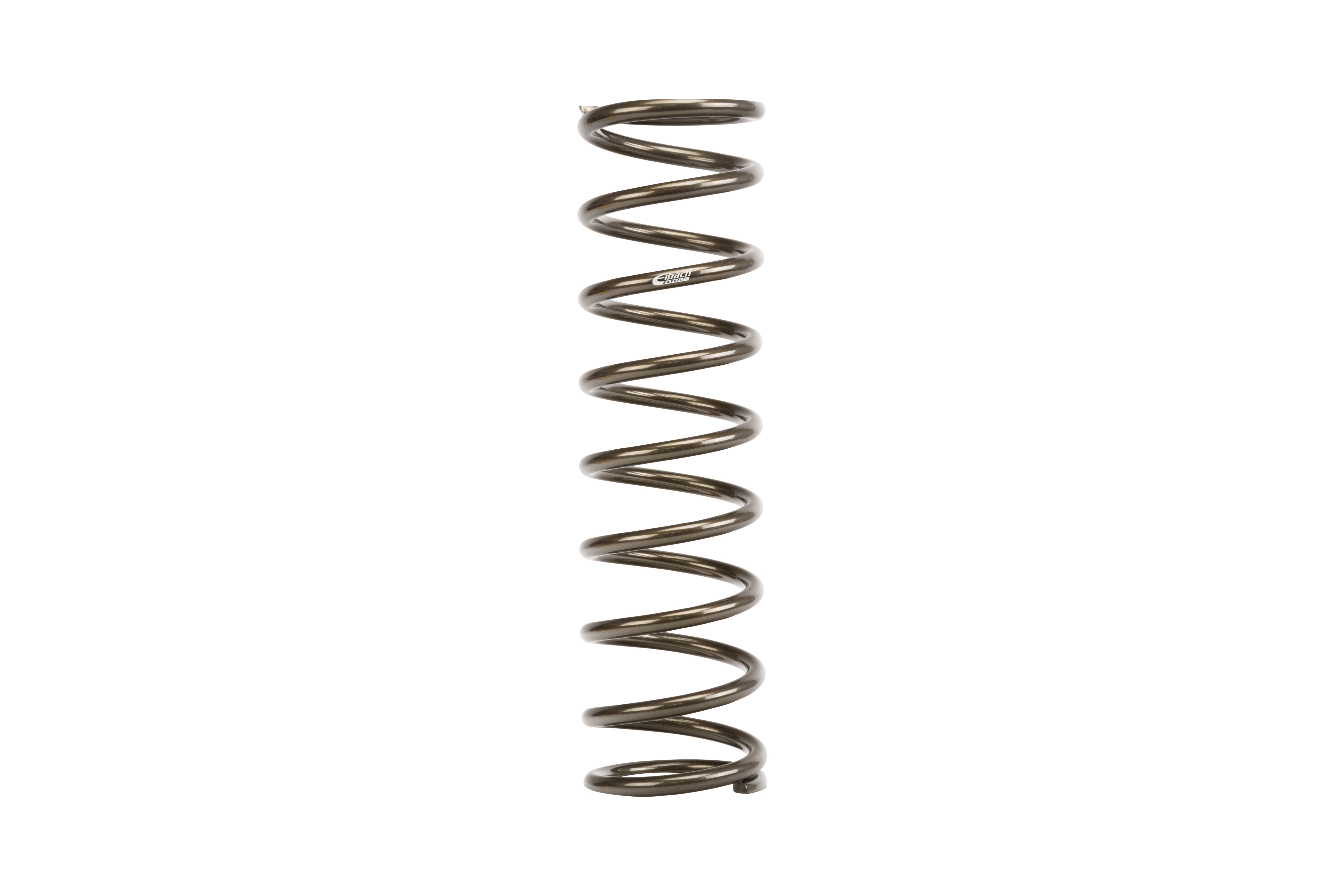

Platinum Rear Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 16.00 | 3.50 I.D. | 70.02 | 3.82 | 12.17 | 852.70 | 4.01 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 406.40 | 88.90 I.D. | 1.25 | 97.00 | 309.00 | 3793.00 | 1.82 |
Features
Eibach PLATINUM series race springs are engineered using our proprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.- Ultra Light-Weight Using High Tensile Steel
- More Travel / Deflection than Standard Racing Coil Springs
- Block Resistant - No Loss in Spring Height!
- Flat-Ground End Configuration with Parallel Tolerance to +/-1 Degree
- The Eibach ER Platinum Springs will Maintain Their Dimensions and Rates to Incredibly Tight Tolerances, Lap after Lap, Race after Race
