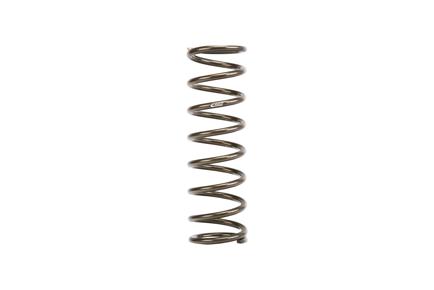

Eibach Platinum Rear - Dia. 350 in | Len: 1400 in | Rate: 8504 lbs/in
Part #: P1400.350.0085
Single Spring
$135.00
FREE ground shipping for Winner's Circle Members - Join Now!
Out of stock - ETA Jan 23, 2026
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Platinum Rear Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 14.00 | 3.50 I.D. | 85.04 | 3.23 | 10.79 | 915.65 | 3.37 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 355.60 | 88.90 I.D. | 1.52 | 82.00 | 274.00 | 4073.00 | 1.53 |
Features
Eibach PLATINUM series race springs are engineered using our proprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.- Ultra Light-Weight Using High Tensile Steel
- More Travel / Deflection than Standard Racing Coil Springs
- Block Resistant - No Loss in Spring Height!
- Flat-Ground End Configuration with Parallel Tolerance to +/-1 Degree
- The Eibach ER Platinum Springs will Maintain Their Dimensions and Rates to Incredibly Tight Tolerances, Lap after Lap, Race after Race
