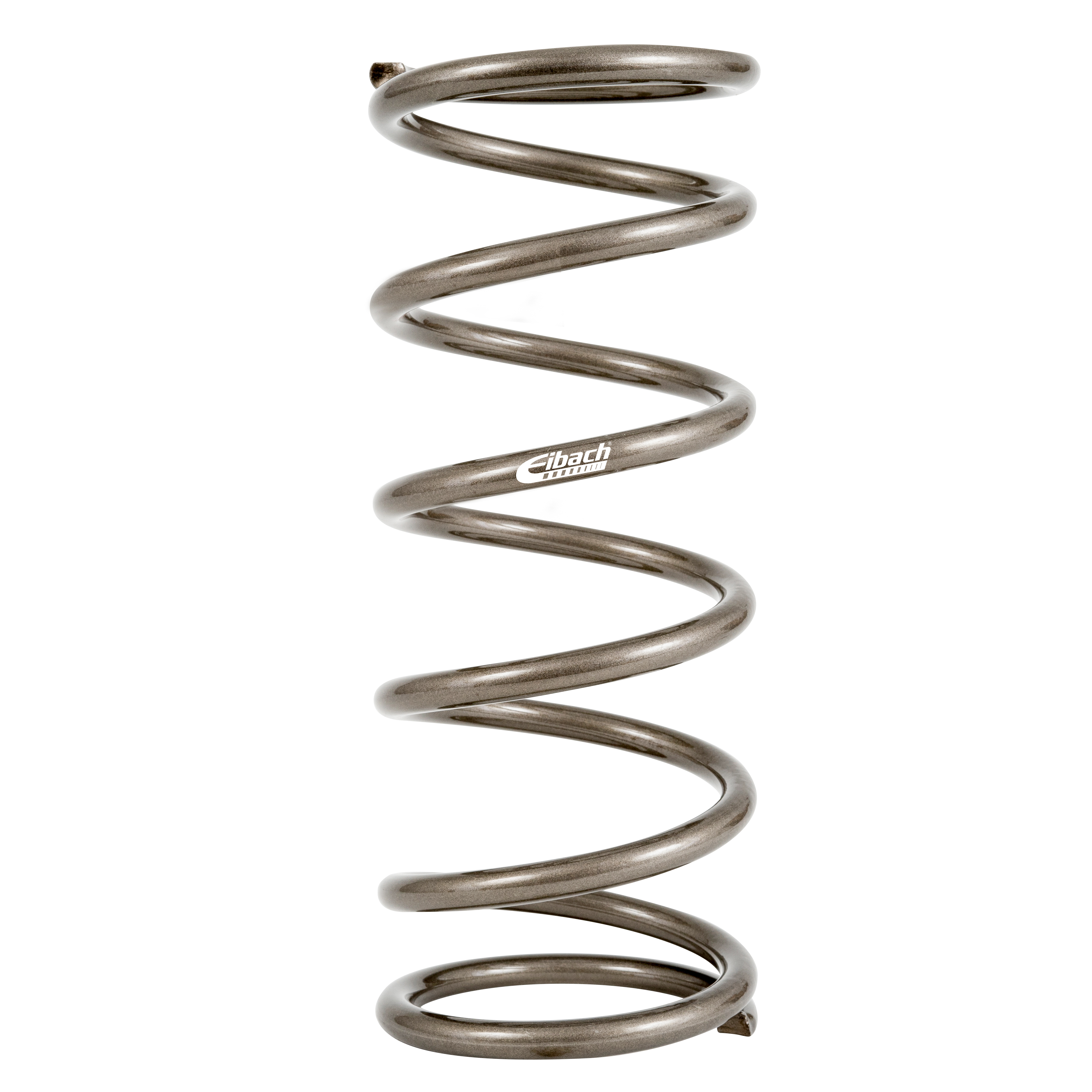

Eibach Platinum Rear - Dia. 5.00 in | Len: 12.25 in | Rate: 375 lbs/in
Part #: ER1225.0375
Single Spring
$91.00 $140.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock - Closeout Sale
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Platinum Rear Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 12.25 | 5.00 O.D. | 375 | 4.00 | 8.24 | 3090.00 | 7.16 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 311.00 | 127.00 O.D. | 6.7 | 102.00 | 209.00 | 13743.00 | 3.25 |
Features
Eibach PLATINUM series race springs are engineered using our proprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.- Ultra Light-Weight Using High Tensile Steel
- More Travel / Deflection than Standard Racing Coil Springs
- Block Resistant - No Loss in Spring Height!
- Flat-Ground End Configuration with Parallel Tolerance to +/-1 Degree
- The Eibach ER Platinum Springs will Maintain Their Dimensions and Rates to Incredibly Tight Tolerances, Lap after Lap, Race after Race
