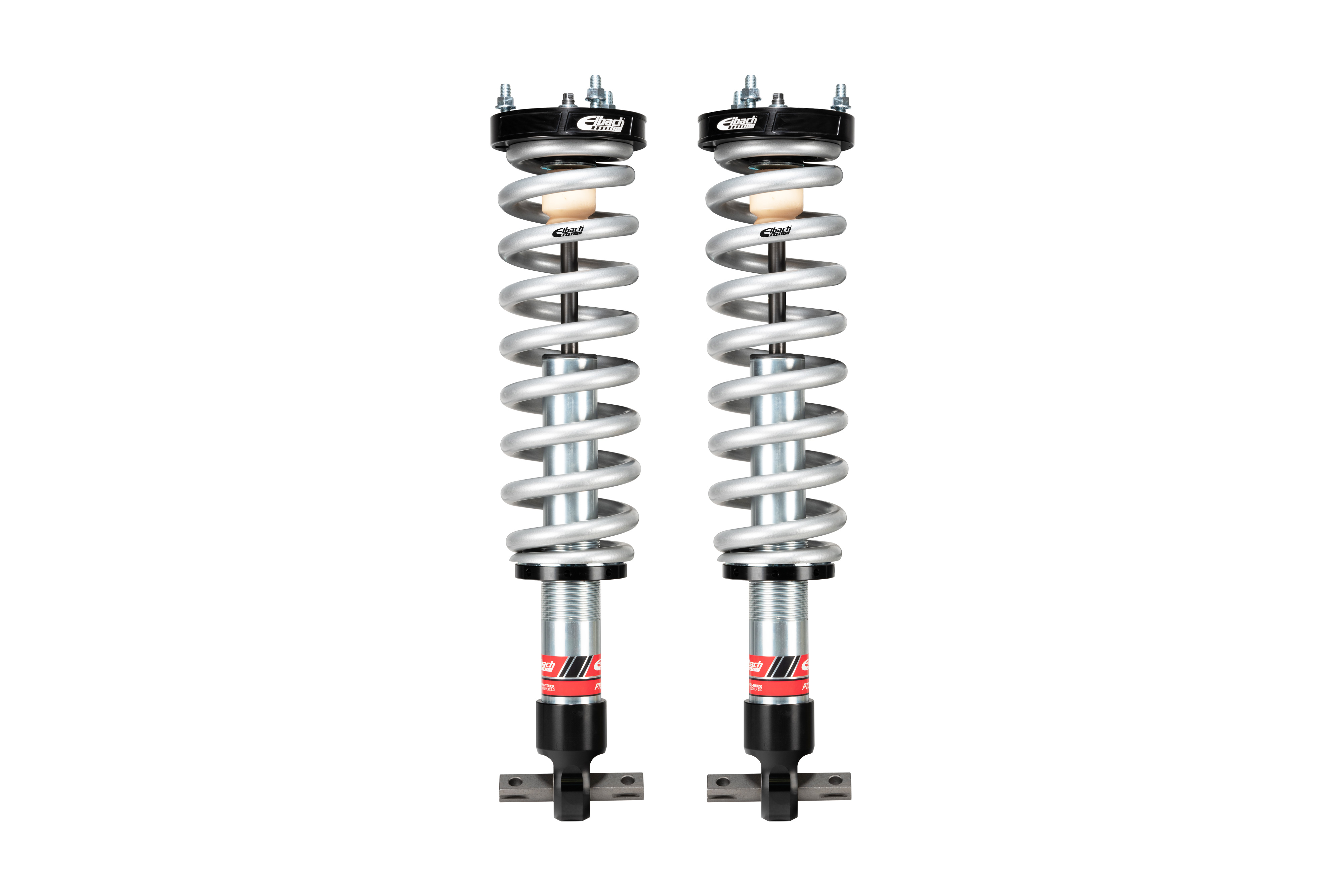

PRO-TRUCK Coilover 2.0

2024-2025 Ford Ranger XL, XLT, LARIAT SuperCrew 2.7L V6 EcoBoost 4WD P703

Features

• Pre-Assembled, Factory Direct Replacement Front Coilover - No Additional Parts Required. Sold in Pairs.
• Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.
• Limited Lifetime Warranty

Note: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Out of the box coil-over height is set to be level with OE rear height. Do not exceed the max called out lift height, poor ride quality will result. 2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.

Note: We do not guarantee fitment, height or warranties on unlisted applications.

Navigation

• Recommended Products
• Warranty
• Reviews

Instructions

• D4444.pdf

Media

Warranty

Eibach's Limited Lifetime Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1-3) trucks under normal use and operating conditions.
