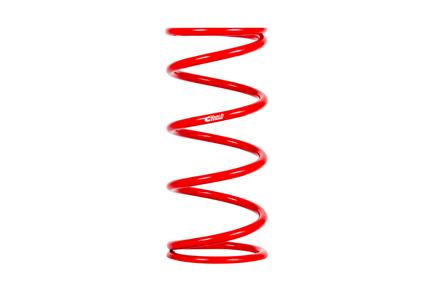

ERS Linear Main Spring - Dia. in | Len: in | Rate: lbs/in
Part #: 1200.500.0275
Single Spring
$90.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Conventional Rear Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 12.00 | 5.00 O.D. | 275 | 3.47 | 8.50 | 2344.99 | 5.80 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 304.80 | 127.00 O.D. | 4.91 | 88.20 | 216.00 | 10431.00 | 2.63 |
Features
Eibach's STANDARD Coilover Springs are designed to precise tolerances featuring our legendary consistency in rate, linearity and measurement. The original spring trusted by racers around the world.- Ultra Lightweight for Reduced Unsprung Mass
- Maximum Travel in Combination with Smallest Block Heights
- Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
- Precision Tolerances - The Tightest in the Industry
- Each Spring Individually Tested and Rated
- Five-Year Warranty
Warranty
Five-Year WarrantyEibach's 5 Year Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1-3) trucks under normal use and operating conditions.
