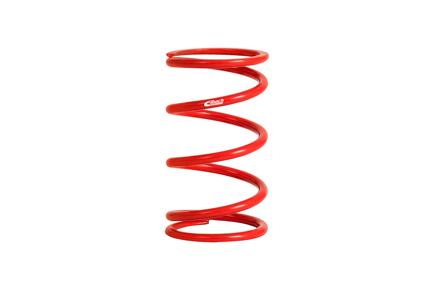

ERS Linear Tender Spring - Dia. 2.36 in | Len: 4.88 in | Rate: 57 lbs/in
Part #: 100-60-0010
Single Spring
$76.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock - Limited Stock Remaining!
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Tender Spring (Linear)
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 4.88 | 2.36 I.D. | 57 | 0.94 | 3.94 | 225.00 | 0.90 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 124.00 | 60.00 I.D. | 1.02 | 24.00 | 100.00 | 1000.00 | 0.41 |
Features

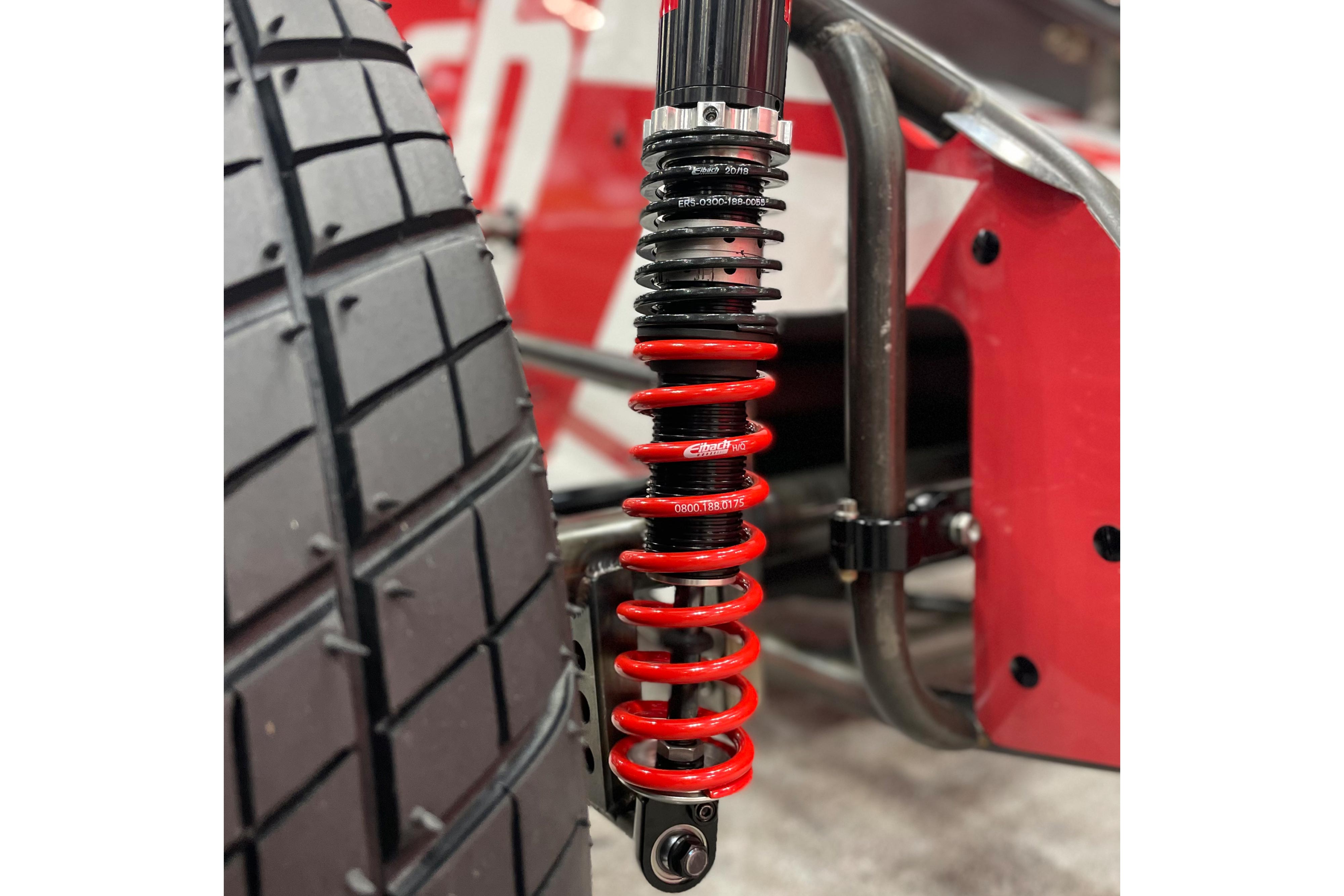

Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel- Provides a Softer Initial Rate When Paired with a Main Spring
- Available in Linear or Progressive Rates
- Each Spring Individually Tested
- Highest Linearity and Guaranteed Consistency
