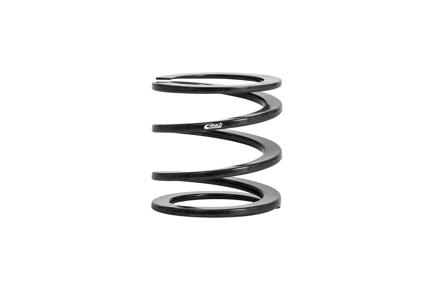

ERS Linear Tender Spring - Dia. 2.25 in | Len: 2.72 in | Rate: 150 lbs/in
Part #: 0175.225.0150
Single Spring
$76.00
FREE ground shipping for Winner's Circle Members - Join Now!
In Stock
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Specifications
Tender Spring (Linear)
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 2.72 | 2.25 I.D. | 150 | 0.97 | 1.75 | 263.00 | 0.88 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 69.00 | 57.00 I.D. | 2.68 | 25.00 | 44.00 | 1170.00 | 0.40 |
Features
Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel- Provides a Softer Initial Rate When Paired with a Main Spring
- Available in Linear or Progressive Rates
- Each Spring Individually Tested
- Highest Linearity and Guaranteed Consistency
